Specifications

• Frame

  Series 1 Comfort, Ebike Specific, 6061 Aluminum, 27.5” Wheels, Disc Specific, Low-Step Design, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts

• Fork

  CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets

• Rims

  Marin Aluminum Double Wall, Disc Specific

• Hub, Rear

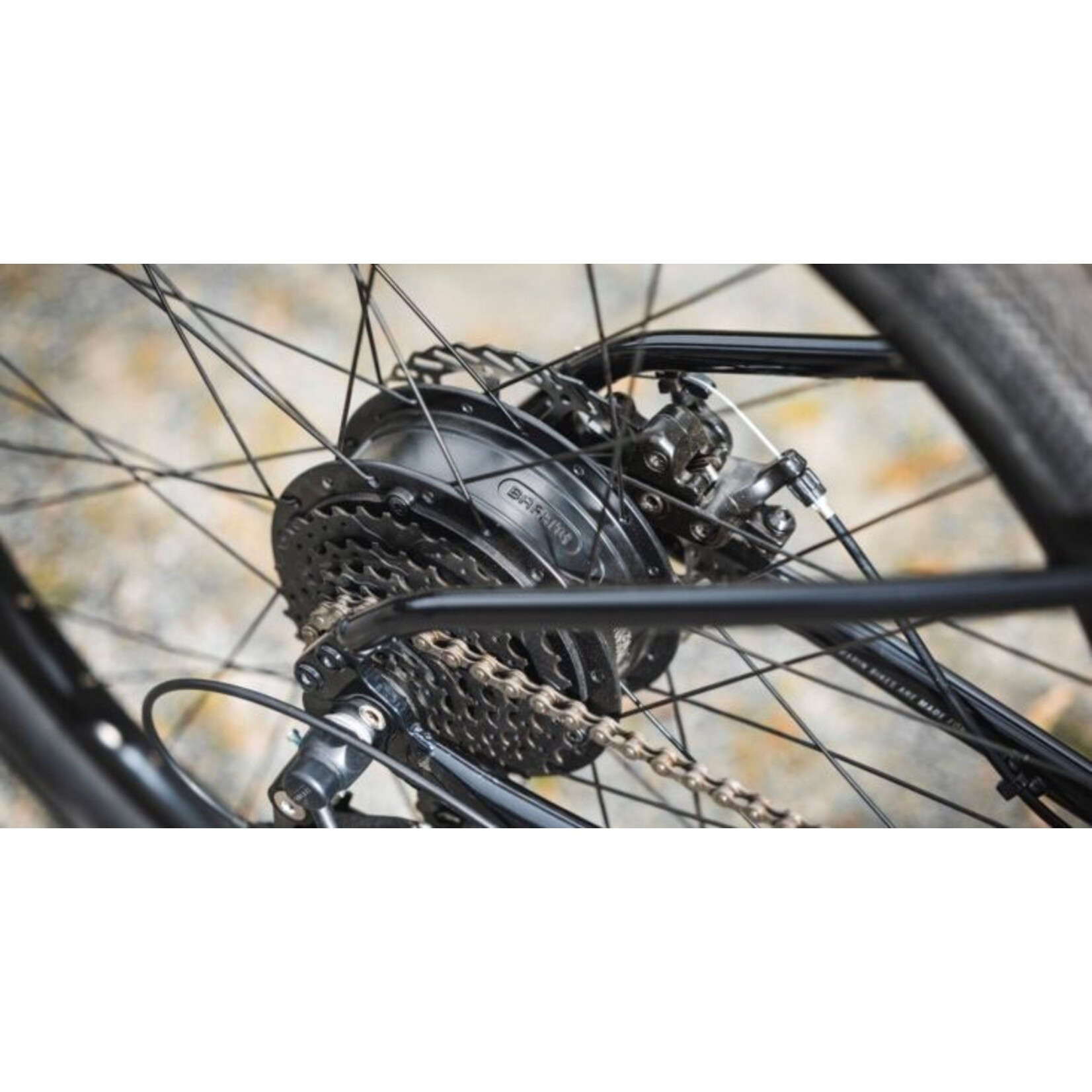

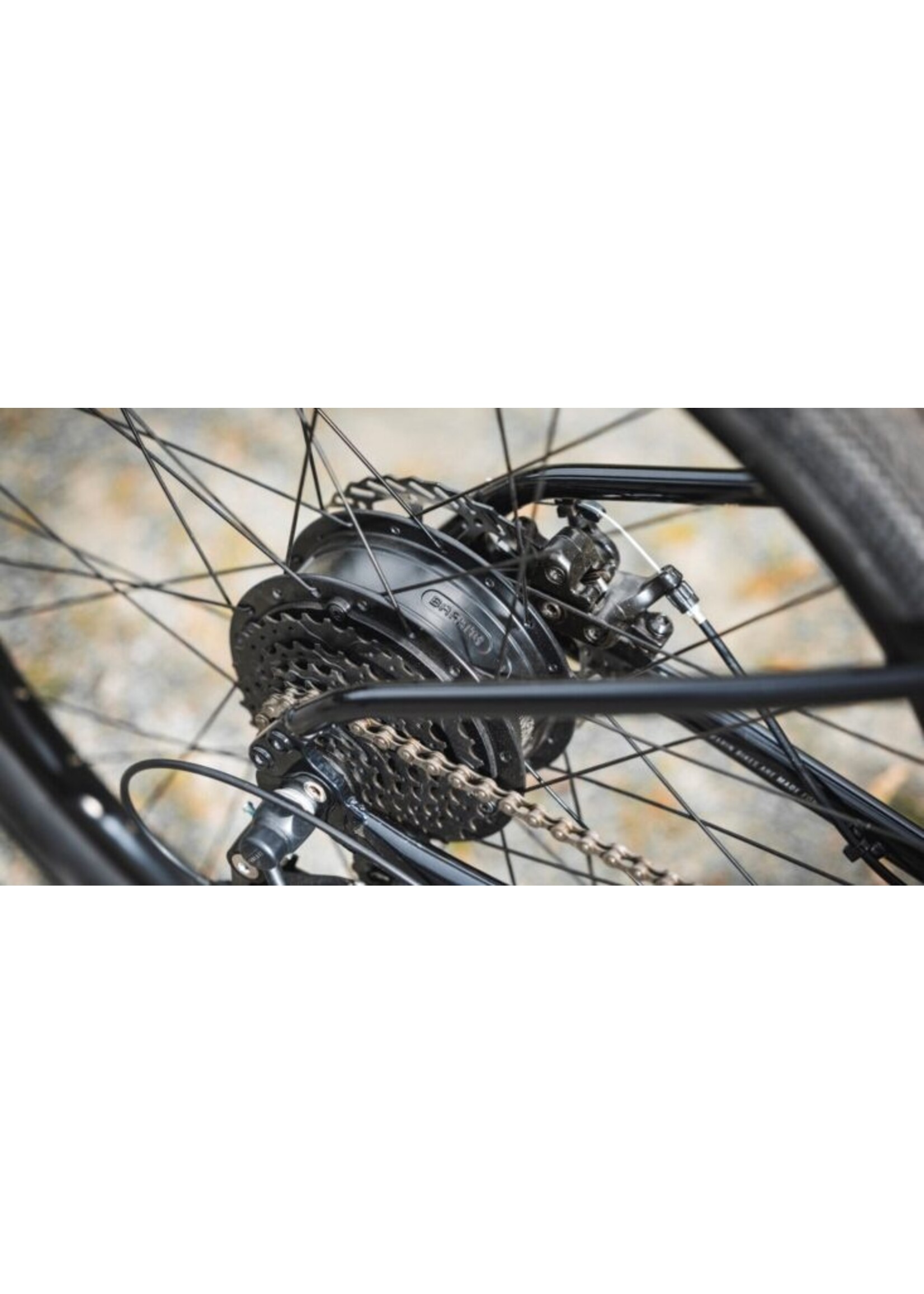

  Bafang 250 Watt Hub Motor, 40Nm, 36H

• Hub, Front

  Forged Aluminum Alloy, 32H

• Spoke, Nipples

  14g Stainless Steel

• Tires

  Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection

• Derailleur, Rear

  Shimano Acera, 8-Speed

• Shift Lever

  Shimano Altus 8-Speed RapidFire

• Crankset

  Alloy Crank, Steel 38T Chainring, Ring Guard

• Bottom Bracket

  Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper

• Chain

  KMC Z8

• Cassette

  SunRace 8-Speed Freewheel, 11-34T

• Brake, Front

  Tektro MDM280 Mechanical Disc, 160mm Rotor

• Brake, Rear

  Tektro MDM280 Mechanical Disc, 160mm Rotor

• Brake Levers

  Alloy, Long Pull

• Handlebar

  Marin Alloy, 25mm Rise, 18˚ Backsweep

• Stem

  Marin Alloy

• Grips

  Marin County

• Headset

  FSA, TH No.10P

• Seatpost

  Marin Alloy, 30.9mm

• Saddle

  Marin Comfort

• Pedals

  Nylon Platform

• Battery

  Bafang 340Wh, 36V, In-tube

• Controller

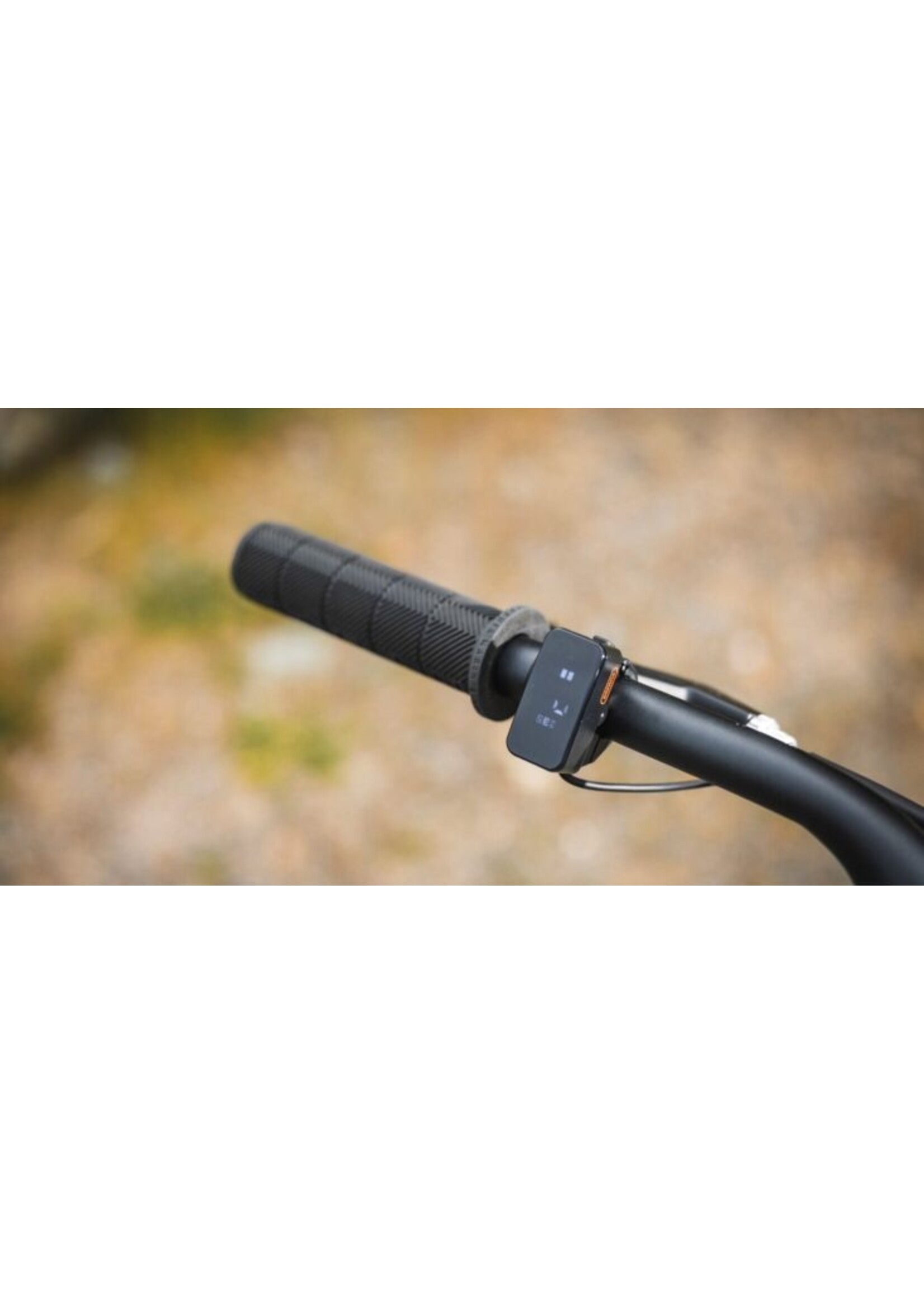

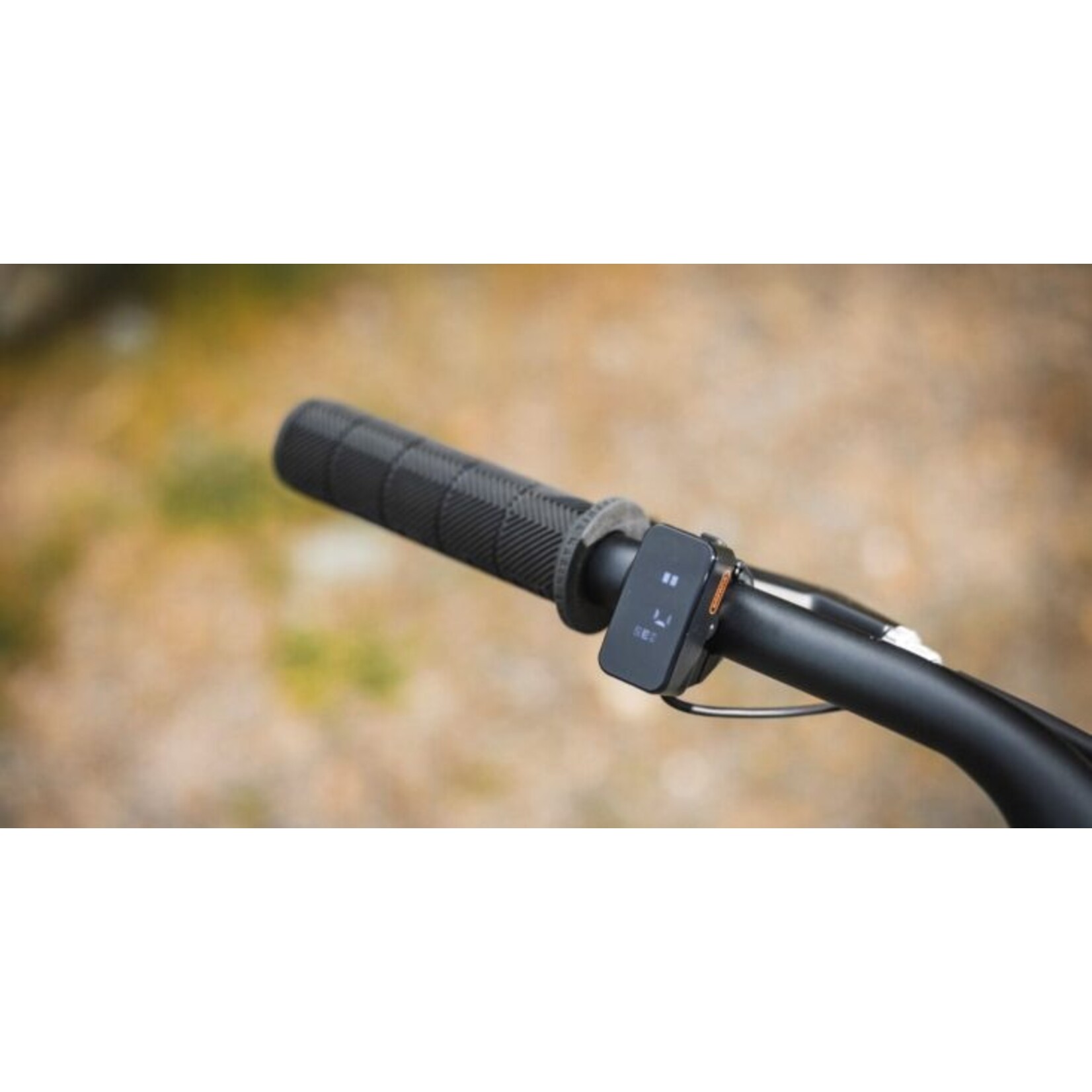

  Handlebar Mount LCD Switch & Display

• Kickstand

  Alloy Center Mount

• Range, Charging Time

  19-62 Miles/25-100km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 6 Hours
